XVR5232AN-S2

XVR5232AN-S2

Nouveau

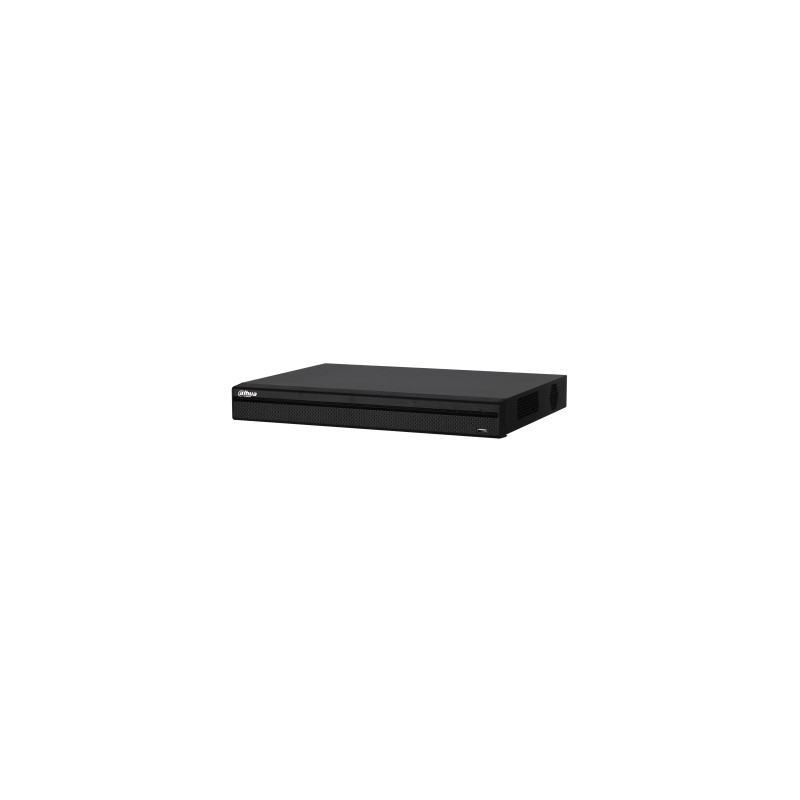

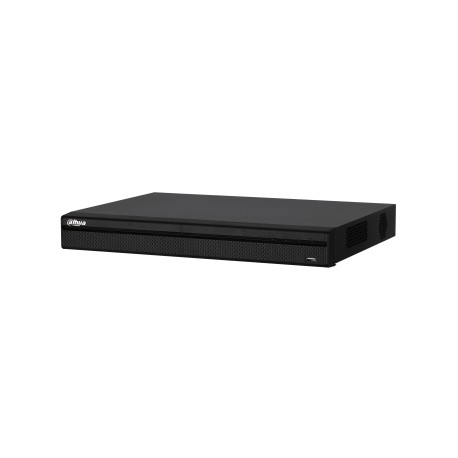

XVR5232AN-S2 ENREGISTREUR HDCVI DAHUA PENTABRIDE

supporte 32 caméras HDCVI

et 2 disques durs

Plus de détails

522,00 € TTC

435,00 €   HT

696,00 €

Ajouter à ma liste

En savoir plus

UL: UL 60950-1

System
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Video and Audio
Analog Camera Input32 Channel, BNC
HDCVI Camera4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera4MP, 1080P@25/30, 720P@25/30fps
TVI Camera4MP1080P@25/30, 720P@25/30fps
CVBS CameraPAL/NTSC
IP Camera Input32 Channel, each channel up to 5MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
CompressionH.264+/H.264
Resolution4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record RateMain stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram: D1/CIF/QCIF(1~15fps)

Bit Rate1Kbps ~ 6144Kbps Per Channel
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Display
Interface1 HDMI, 1 VGA, 1 TV
Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display1/4/8/9/16/25/36
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface1 RJ-45 Port (1000M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.42, CGI Conformant
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback1/4/9/16
Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD2 SATA Port, up to 8TB capacity
eSATAN/A
Auxiliary Interface
USB1 USB 2.0 , 1 USB 3.0
RS232N/A
RS4851 Port, for PTZ Control
Electrical
Power SupplyDC12V/5A
Power Consumption<20W (Without HDD)
Construction
Dimensions1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″)
Net Weight2.35kg (5.2 lb) (without HDD)
Gross Weight3.2kg (7.05lb)
InstallationDesktop installation
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
CertificationsFCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1
